SAP SILO

LAPIERRE always offers superior quality equipment that increases your efficiency.

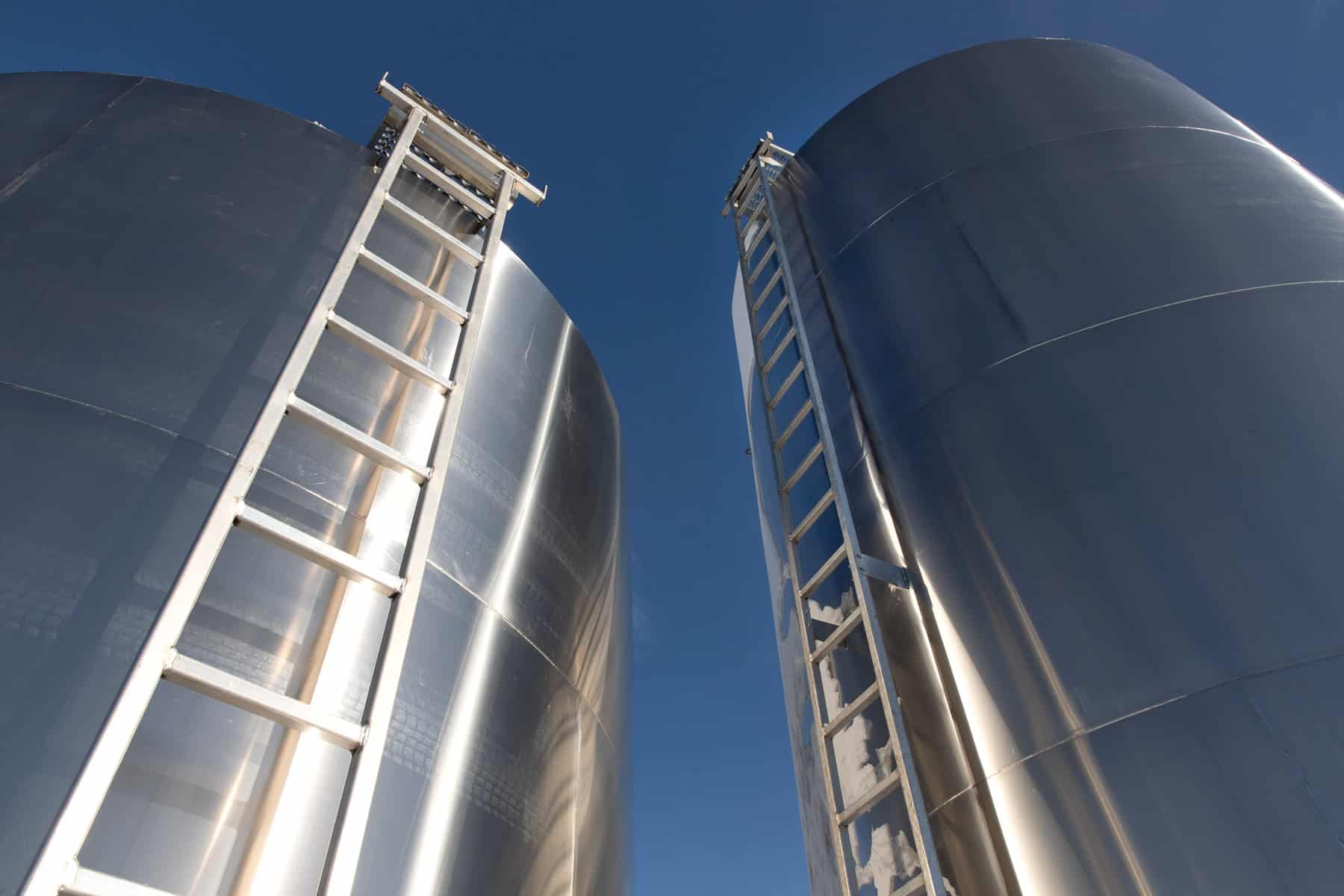

Your sugar bush is growing and you are thirsty for space to store your sap or permeate. This means using equipment that delivers performance and that you can trust. Introducing our new stainless steel SAP SILOS.

Characteristics:

  • Stainless steel, brushed finish, 11 gauge
  • Angled bottom for easy drainage
  • Reinforced and urethane insulated base with fixation
  • Stainless steel mounting brackets
  • Complies with food industry standards
    in Canada and the United States
  • Stainless steel adapters allow level installation

3 good reasons
to use our sap silos:

  • Provide you with storage space adapted to your needs
  • Avoid the need to expand or build and maintain a building to install new tanks
  • Use equipment that has its own cleaning system

Included accessories:

  • Access door at the base
  • Air vent with screen
  • Rotary washing ball
  • Inlet and overflow on 2″ (5.08 cm) ferrule or threaded
  • Outlet on 3″ (7.62 cm) ferrule or threaded

Optional accessories:

  • Customization with the name or logo of your sugar bush
  • Ladder cage adapted to North American building standards
  • Access door on top
  • Standardized ladder, walkway and guardrails
  • 2″ top feed plumbing with bracket
  • Stainless steel connection box to the structure
  • What is excluded : transport and installation
Diameter Height Volume
8 ft. (2.44 m) 8, 10, 12, 15 and 25 ft. (2.44, 3.05, 3.66, 4.57 and 7.62 m) 3 000 to 8 366 gal US
10 ft. (3.05 m) 12, 15, 20 and 25 ft. (3.66, 4,57 6.10 and 7.62 m) 6 600 to 14 000 gal US
12 ft. (3.66 m) 15, 20, 25, 30 and 40 ft. (4.57, 6.10, 7.62, 9.14 and 12.2 m) 12 000 to 33 840 gal US

Other dimensions, please inquire.

Transport TANK

In addition, you can also opt for our sap transport solutions using our TRANSPORT TANKS. This equipment is available in several customizable options.

Characteristics:

  • Stainless steel, brushed finish, 11 gauge
  • Access door on top
  • Stainless steel hooks for tank mounting [76 in. (1.93 m) tank]
  • Top hooks (2) and side ties (4)
  • Outlet on 2 in. (5.08 cm) ferrule or threaded ferrule of your choice
  • Stainless steel mounting brackets with holes for bolting
  • Integrated cleaning system

Optional accessories:

  • Customization with the name or logo of your sugar bush
  • Stainless steel hooks for tank mounting [Tanks less than 76 in. (1.93 m)]
  • Ladder to enter and exit the tank
  • Unloading plate for a forklift truck

What is excluded : transport and installation

Diameter Length Volume Accessory(ies)
46 in. (1.17 m) 4 and 5 ft. (1.22 and 1.52 m) 345 to 430 gal US (287 to 358 gal) 1 rotary washing ball
54 in. (1.37 m) 8 to 12 ft. (2.44 to 3.66 m) 950 to 1,425 gal US (791 to 1,187 gal) 2 rotary washing balls
1 anti-wave baffle
76 in. (1.93 m) 10 to 20 ft. (3.05 to 6.10 m) 2,350 to 4,700 gal US (1,957 to 3,914 gal) 2 rotary washing balls
1 anti-wave baffle

Other dimensions, please inquire.
